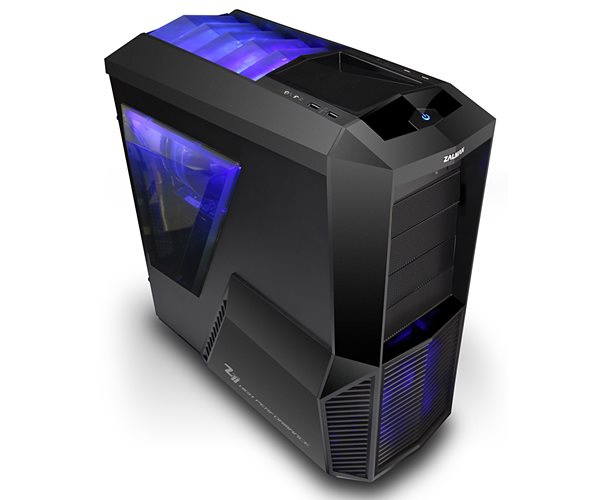

Mid-tower, ATX, Micro-ATX, 4x 5,25", 6x 3,5", 1x 2,5", 5x ventilátor, 2x USB 3.0, 2x USB 2.0, mic + sluchátka, 7.4kg
Podrobnosti o produktu
Popis produktu:
Zalman`s Powerful HDD Cooling Solution
Interactive Cooling System : Hot air generated from HDD is
expelled through both sides. Cooling Performance is
maximized for HDD cooling, and the overall PC exhaust is
increased.
Top Air
Vent Exhaust/Tuning
For user convenience, Top air vents expel exhaustive
air from the top cooling fan. In addition,
translucent acryl vents are effective for tuning.
Side-Panel
Acryl Tuning
Dynamic Side Acryl Tuning is provided for users to
view the
interior of gaming system.
Supports
Dual USB 3.0 Ports
I/O module provides dual USB 3.0 ports for user
convenience and expandability.
Dust
Filters for Front and Bottom of System
and PSU
Dust filters in the front and bottom mesh covers
prevent
dust from entering the system and keep the internal
components dust-free.
Additional
Card Holder Provided
When installing VGA Card and PCI Slot, the bracket
can be used permanently.
Supports
Bottom PSU Installation and Aperture for Cable
Management
Z11 Plus supports bottom PSU installation and
provides an aperture for cable management to make
better use of interior space.
Black
Interior Coating
The interior of chassis is coated black to provide a
sense of unity and elegant design.
Anti-Vibration
Rubber Stand
Anti-Vibration Rubber prevents noise and also keeps
the system safe from water or other liquid.
Tool Free
HDD Installation with Anti-Vibration
Rubber
The server-type Tool-Free HDD Mount Trays allow easy
HDD
installation/removal and maintenance.
Spacious
Interior for 290mm Card Installation
The interior has been designed to be spacious for
easy installation and maintenance of various
components.
Supports
Solid-State Drive (SSD)
Space is provided on the back of M/B plate for
installing 2.5" HDD/SSD.
※ Use the bracket located on the 5.25” bay.
Separate
Apertures for Convenient CPU Cooler
Installation
Separate apertures for CPU cooler are provided for
convenient
CPU cooler installation without having to remove
motherboard
from case.
3-in-1
Bracket Provided
3IN1 Adapter Tray is provided for installing FDD /
3.5“
HDD / 2.5" HDD/SSD.
Rear Tube
Apertures for Liquid Cooling Systems
Tube apertures are provided at the rear of the case
for convenient water cooling set-up and maintenance.
- Main Unit
- Stand-off
- A Bolts (#6-32*6mm) [PSU/PCI Slot
Installation]
- B Bolts (M3*5mm) [M/B, FDD, SSD
Installation]
- C Bolts (M3*6mm) [5.25" Bay ODD
Installation]
- D Bolts (#6-32*4mm) [3.5" Bay HDD
Installation]
- E-Bolts (#6-32*6mm) [3.5" HDD
Installation]
- HDD Anti Vibration Damper [3.5"
Bay HDD Installation]
- Cable Ties
- CPU Power Extension Cable
- Card Holder PCI Bracket
- SSD Tray
- User`s Manual
Enclosure
Type
ATX
Mid Tower
Dimensions
260(W)
x 498(H) x 525(D)mm
Weight
7.4kg
Material
Plastic,
Steel
Motherboard
Compatibility
Standard
ATX / Micro ATX
Power
Supply Compatibility
Standard
ATX / ATX12V
VGA
Compatibility
Full
Size (up to 290mm)
Expansion
Slot
7
Drive
Bays
5.25"
External
Bay x 4
3.5"
External
Bay x 1, Internal Bay x 5
5.25"/3.5"/2.5"
1
(3in-1)
Cooling
Components
Front
1 x
120mm Blue LED Fan (120mm / 140mm)
Top
2 x
120mm Fan (1 x Blue LED Fan Included, 1 x Optional)
Podrobnosti o produktu
Popis produktu:
interior of gaming system.
and PSU
dust from entering the system and keep the internal
components dust-free.
Rubber
installation/removal and maintenance.
※ Use the bracket located on the 5.25” bay.
Installation
CPU cooler installation without having to remove motherboard
from case.
HDD / 2.5" HDD/SSD.
- Stand-off
- A Bolts (#6-32*6mm) [PSU/PCI Slot Installation]
- B Bolts (M3*5mm) [M/B, FDD, SSD Installation]
- C Bolts (M3*6mm) [5.25" Bay ODD Installation]
- D Bolts (#6-32*4mm) [3.5" Bay HDD Installation]
- E-Bolts (#6-32*6mm) [3.5" HDD Installation]
- HDD Anti Vibration Damper [3.5" Bay HDD Installation]
- Cable Ties
- CPU Power Extension Cable
- Card Holder PCI Bracket
- SSD Tray
- User`s Manual
Components
Stránky o produktu:
http://www.zalman.com/contents/products/view.html?no=334
