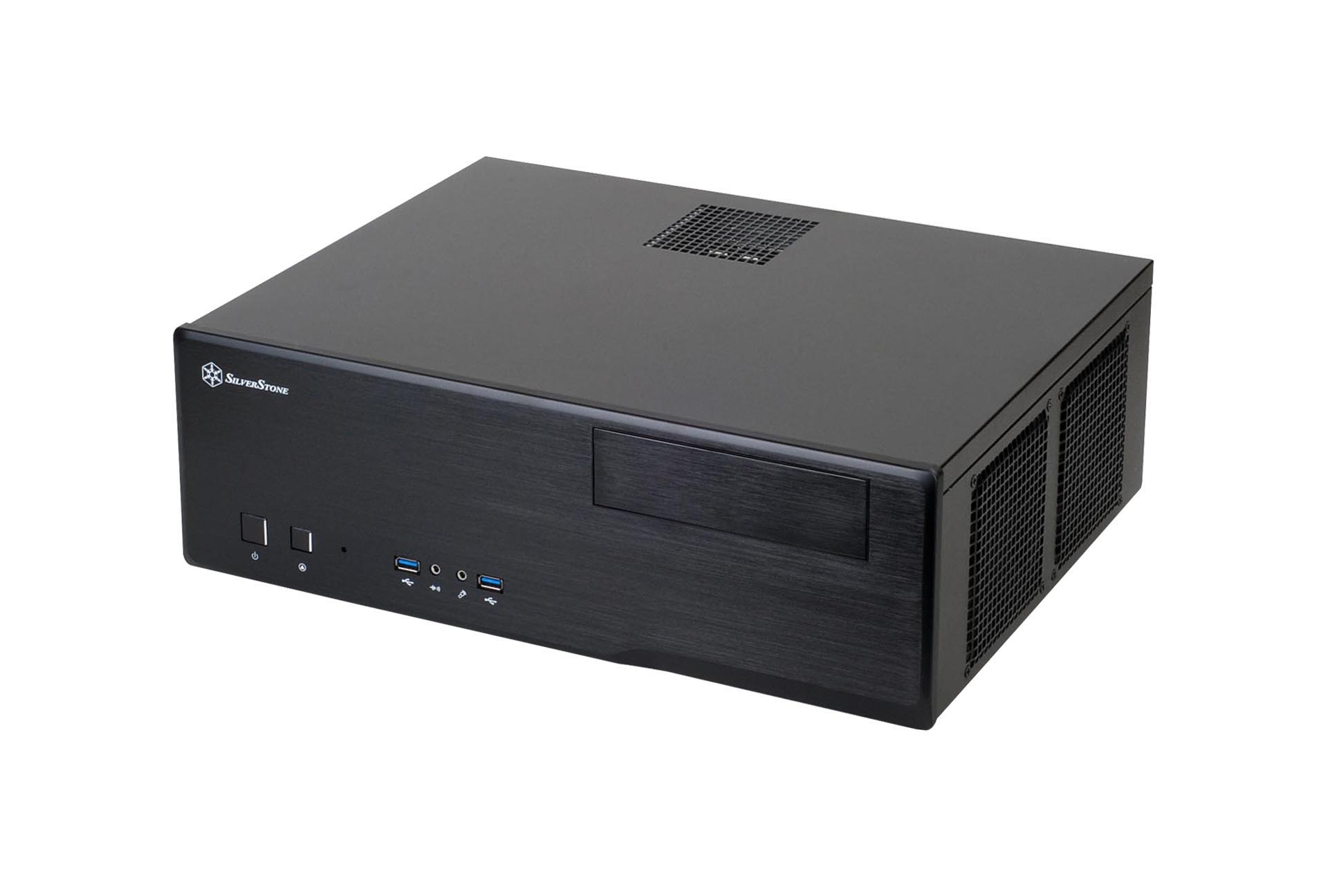

SilverStone Grandia GD05B černá, HTPC/Desktop, Micro-ATX








SilverStone Grandia GD05B černá, HTPC/Desktop, Micro-ATX




















Výrobce SilverStone
KódSS1003
Part No.SST-GD05B USB 3.0
EAN4710713968806
Dostupnost

skladem


Dostupnost na pobočkách

skladem



HLS


Záruka24 měsíců
StatusV ceníku
Objednat
Hodnocení produktu

Hodnoceno 0x

















Počítačová skříň pro HTPC systémy, podpora Micro-ATX, Mini-DTX, Mini-ITX základních desek, 1x 5.25", 2x 3.5", 3x 2.5", 2x USB 3.0, 3x 120mm ventilátor, 440x151x325mm, 4,7kg, bez zdroje, černá







Podrobnosti o produktu





Popis produktu:

Grandia Series     GD05



■ Three silent 120mm fans included

■ Positive air pressure design for excellent cooling/quietness and dust-prevention

■ Beautiful aluminum skin for classic appearance

■ Incredible 325mm depth to fit comfortably inside home theater cabinet

■ Designed with cable routing for easy installation

■ Supports power supply up to 180mm long

■ Supports expansion cards up to 11 inches

■ Supports 2.5” hard drive or SSD (Solid-state drive)

         The Grandia GD05 is a follow-up of the incredible GD04 as a chassis that combines years of SilverStone expertise in SFF (Small form factor) and HTPC (Home Theater Personal Computer) designs. It has the same beautifully proportioned exterior and powerful thermal capability that rivals the best tower chassis. However, the front panel of the GD05 was designed to be more flexible so that its 325mm depth can be utilized in more places than just home theaters. Even though GD05’s diminutive size allows it to easily integrate into any home theater cabinet, it can still accommodate an impressive list of standard components such as 5.25” device, two 3.5” hard drives, a 2.5” SSD, a standard ATX power supply, and two high-end graphics cards up to 11 inches. Cooling duty in the GD05 is handled by three filtered 120mm fans designed with the same positive air pressure to enable class-leading cooling efficiency, reduced dust buildup, and silent operation. To make installation simpler, there is even enough space for cable management to be easily accomplished without the need for short cabled or modular power supply. Coupled with special attention given to the order of installation, any user can quickly assemble or upgrade the GD05 with a small and powerful PC system.



Remark
Graphic card length reference:
AMD Radeon HD 5870 11"
NVIDIA GeForce GTX295/280/260/275 - 10.5"
NVIDIA GeForce 9800GTX/9800GTX+ - 10.5"
AMD Radeon HD 4870X2 - 10.5"
AMD Radeon HD 5850 - 9.5"
NVIDIA GeForce 9800GTX/9600GT/GTO - 9"
AMD Radeon HD 4870/4850 - 9"




Model No. SST-GD05B(Black)
SST-GD05B-USB3.0(Black)
--
--
Material Aluminum skin over plastic front panel, 0.8mm SECC body
Motherboard Micro-ATX, Mini-DTX, Mini-ITX
Multimedia --
Drive Bay External 5.25" x 1
--
Internal 3.5" x 2 , 2.5” x 1 or 3.5" x 1 , 2.5” x 2
Cooling System Front --
Rear 2 x 80mm fan slots (optional mounting)
Side Right: 2 x 120mm intake fans, 1200rpm, 20dBA
Left: 1 x 120mm intake fan, 1200rpm, 20dBA
Also compatible with 80mm fan
Top --
Bottom --
Internal --
Expansion Slot 5
Front I/O Port USB 2.0 x 2 (GD05B only)
USB 3.0 x 2 (GD05B-USB3.0 only)
audio x 1
MIC x 1
Power Supply Support standard PS2(ATX)
Operating system support --
Expansion Card Support graphic cards up to 11 inches., width restriction-4.92"
Limitation of CPU cooler 70mm (remove ODD if you want install up to 120mm)
Limitation of PSU 180mm (remove Left fan replacement as 80mm if you want install up to 220mm)
Net Weight 4.7kg
Dimension 440 mm (W) x 151 mm (H) x 325 mm (D), 21.6 liters
http://www.silverstonetek.com/product.php?pid=241&area=en
